Multiple throttle valve block for air volume regulation in paper machines
Product information

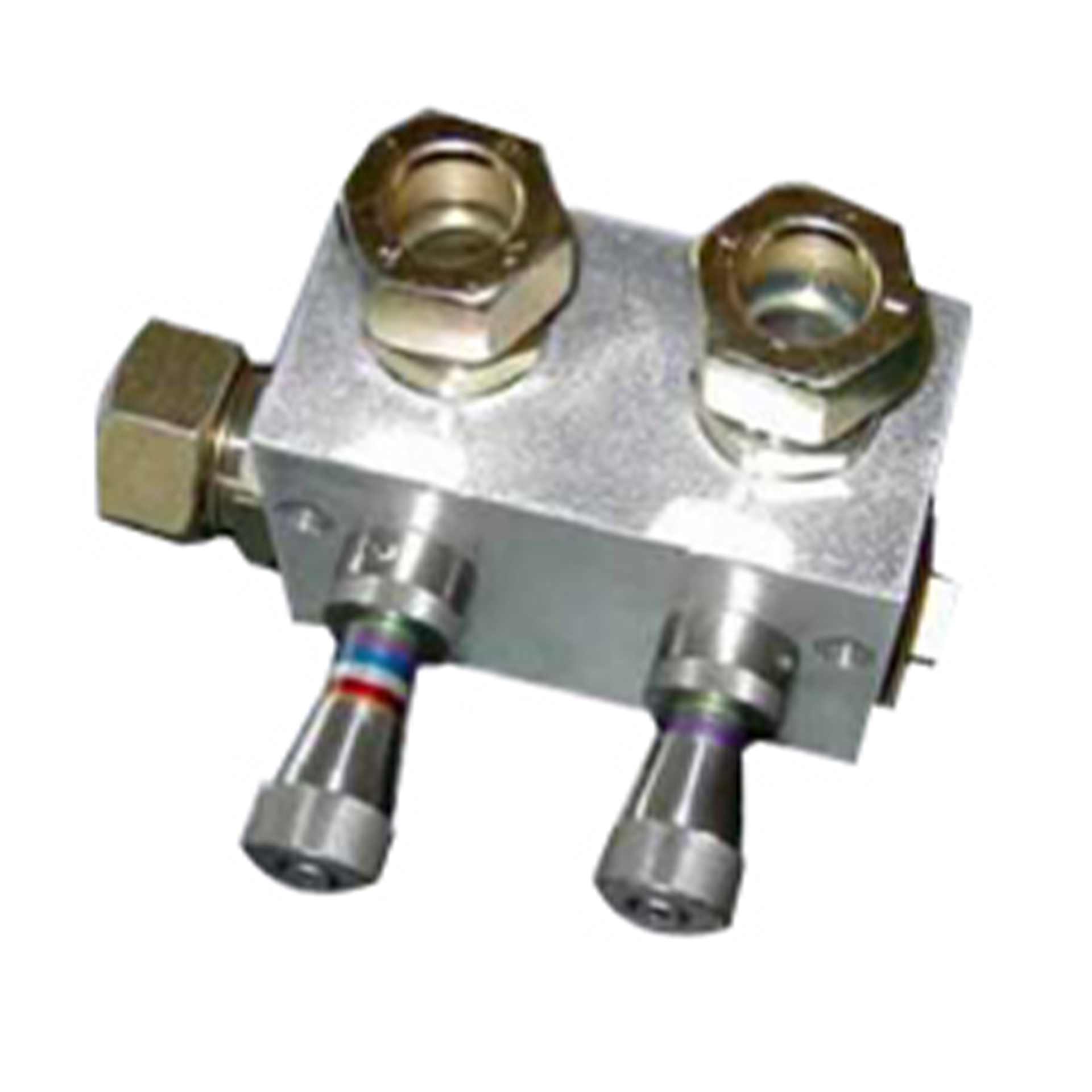

Multiple throttle valve block for air volume regulation in paper machines
The valve block with 1″ air connections is used to distribute and finely adjust blowing air in paper machines. It offers up to three outlets and several connection options for the supply air. The block is made of anodized aluminium, all throttle parts are made of stainless steel. Colored marking rings allow reproducible adjustment of the throttle cross-sections.
